Consumer Unit Upgrades Ropley | Fuse Board Replacement

We recently looked at a consumer unit upgrade for a detached four-bedroom property on Hammonds Lane in Ropley. The customer contacted us because the electrics had not been checked since they had lived in the property, and they wanted to understand whether the existing fuse board and electrical installation were still suitable.

That is a sensible question to ask, especially where an older fuse board is still in service.

Before recommending the upgrade, we advised carrying out an Electrical Installation Condition Report. This allowed us to check the existing circuits, consumer unit, earthing, bonding, meter tails, main earth and protective devices before planning the consumer unit replacement.

Those checks matter because a modern consumer unit should be fitted to an installation that has been properly assessed first.

Does an old fuse board always need replacing?

Age alone does not mean a fuse board must be replaced, but its condition and level of protection need to be assessed properly.

Some older boards remain serviceable. Others have rewireable fuses, damaged covers, poor labelling, limited RCD protection, overcrowded wiring or signs that the installation no longer suits how the home is used.

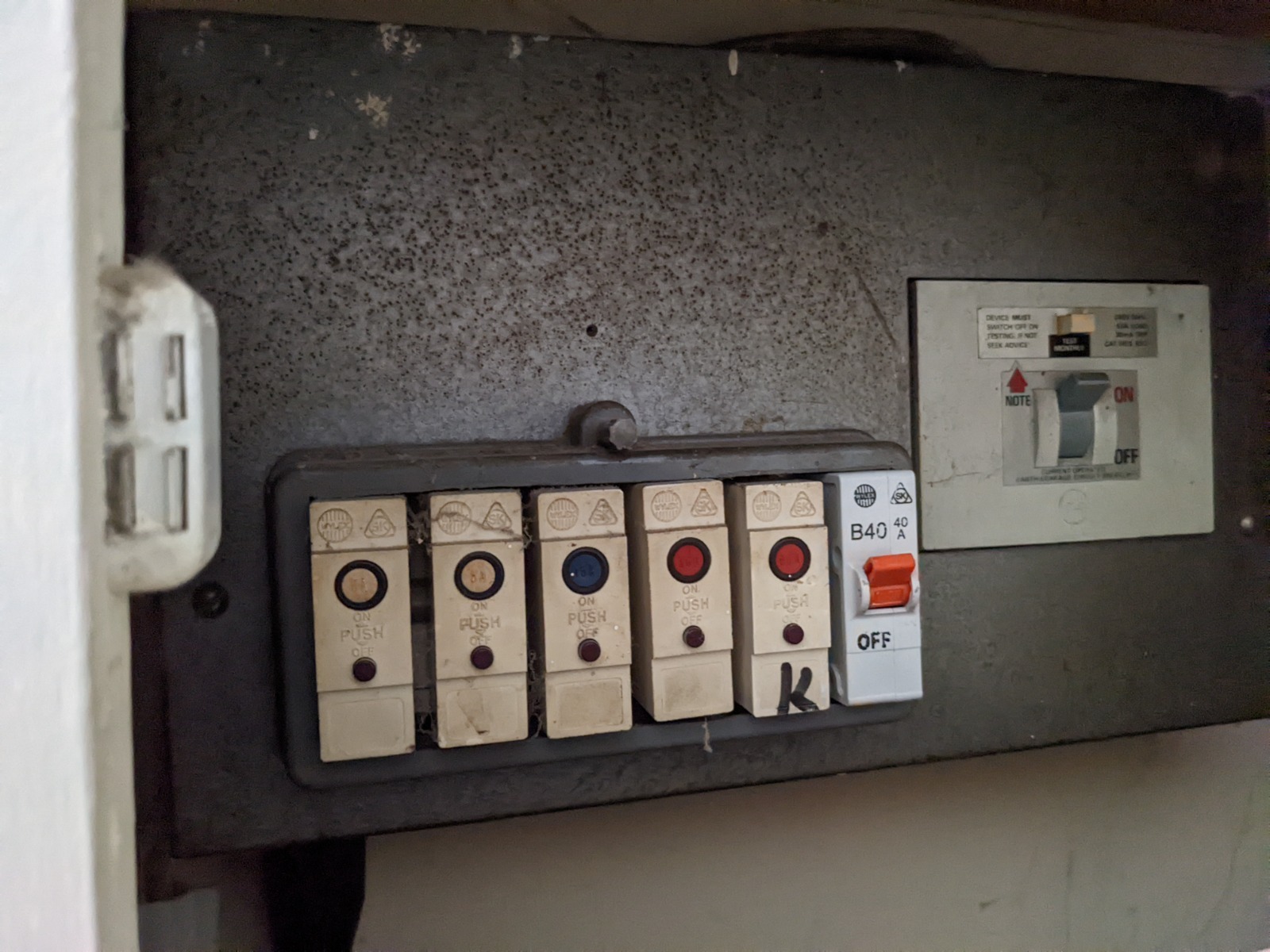

At this Ropley property, the existing board was a BS 3036 rewireable fuse board with push-in M1 MCBs. That told us the installation needed a closer look before any decision was made about replacement.

The customer’s concern was not that something had failed on the day. The concern was that the installation had not been checked for some time, and the existing board did not provide the level of protection expected from a modern consumer unit.

Why do we complete an EICR before the consumer unit upgrade?

We complete an EICR first because it gives us a clear picture of the existing installation before the consumer unit is replaced.

This is especially important on older installations. A modern RCBO consumer unit can reveal issues that may not have been obvious with an older fuse board. Completing the EICR first allows us to test the existing circuits, check the earthing and bonding, assess the protective devices and identify any remedial work needed before the upgrade goes ahead.

At this Ropley property, the EICR and pre-upgrade checks identified undersized bonding conductors, undersized meter tails and an undersized main earth. These items needed to be included as part of the planned work, rather than treated as unexpected extras later.

This approach gives the customer a clearer quotation and avoids treating the consumer unit replacement as a board-only job.

Why does bonding need checking before a board change?

Bonding needs checking because the earthing and bonding arrangements are a key part of electrical safety.

Before a consumer unit upgrade, we check the main earthing conductor and protective bonding to services such as gas and water where applicable. If bonding is missing, undersized or disconnected, it may need upgrading before or as part of the work.

At this Ropley property, the bonding conductors were undersized. The meter tails and main earth also needed attention.

These are the sorts of issues customers do not usually see. The fuse board is visible. The bonding and main earth are easier to overlook. For us, they are central to the condition of the installation and need to be checked properly before the new board is installed.

Why do meter tails and the main earth matter?

Meter tails and the main earth matter because they are part of the supply arrangement serving the consumer unit.

If the meter tails or main earth are undersized, they may need upgrading before or during the consumer unit replacement. Fitting a new board without checking these parts of the installation would leave an important part of the job unresolved.

On this property, we advised replacing the consumer unit and upgrading the meter tails, bonding conductors and main earth to the correct size as part of the same planned work.

That gave the customer a proper upgrade, rather than a cosmetic replacement of the old fuse board.

Should a new consumer unit have RCBOs?

A new consumer unit should usually be designed with individual RCBO protection where appropriate for the installation.

At Wessex Electrical Services, we do not install split load consumer units. We prefer RCBO consumer units because each circuit has its own individual protection. That means a fault on one circuit is less likely to disconnect unrelated circuits elsewhere in the property.

For example, an outside light fault should not take out half the house if the board is designed properly.

For this Ropley upgrade, we advised an RCBO consumer unit. This gives a better arrangement for fault isolation, testing, future maintenance and day-to-day use of the property.

Do we recommend surge protection?

Yes, we recommend surge protection as part of modern consumer unit upgrades.

A surge protective device helps protect electrical equipment from transient overvoltages. Many homes now contain sensitive equipment such as boilers, smart heating controls, computers, TVs, chargers, appliances, broadband routers and home office equipment.

For this Ropley property, surge protection was included in the upgrade recommendation.

It is a sensible addition when replacing an older fuse board, especially where the property is being brought up to a more modern standard of protection.

What happens during a consumer unit upgrade?

A consumer unit upgrade usually includes assessment, testing, safe isolation, removal of the old board, installation of the new unit, circuit identification, inspection, testing, certification and Building Regulations notification where required.

The power will need to be switched off while the work is carried out. We explain this before the job so the customer can plan around it.

For this Ropley property, the work we advised included replacing the existing BS 3036 fuse board, installing a modern RCBO consumer unit, fitting surge protection, upgrading the undersized bonding conductors, installing correctly sized meter tails and upgrading the main earth.

Once installed, the new consumer unit would be inspected, tested, certified and labelled clearly so the customer knows what each circuit supplies.

Can a consumer unit upgrade help older homes in Ropley?

Yes, a consumer unit upgrade can help when an older installation lacks modern protection, clear circuit identification or suitable arrangements for how the home is now used.

Ropley has a mix of older homes, extended properties, cottages, family houses and rural homes with garages, workshops, outbuildings and outdoor supplies. Many properties have had electrical additions carried out over the years.

A detached four-bedroom home may now have far more electrical demand than when the original fuse board was installed. Kitchens, heating controls, home offices, outdoor equipment, smart devices and modern appliances all affect how the installation is used.

That does not mean every older fuse board is unsafe. It means the installation should be checked properly before deciding what work is needed.

Why choose Wessex Electrical Services for a consumer unit upgrade in Ropley?

Wessex Electrical Services carries out consumer unit upgrades and fuse board replacements across Ropley, Alton and the surrounding Hampshire area.

We are NAPIT registered, Which? Trusted Trader endorsed, Trading Standards Approved, TrustMark registered and fully insured.

We test thoroughly, install neatly and explain the work clearly.

Consumer unit replacement is safety-critical work. It needs proper testing, suitable equipment, correct earthing and bonding arrangements, clear labelling, certification and notification where required.

On this Ropley job, the customer approved the quotation after we explained the findings and the recommended work. That is how we prefer to work. Clear inspection first, clear advice next, then a properly planned upgrade.

FAQs: Consumer Unit Upgrades Ropley

Is a consumer unit upgrade the same as a fuse board replacement?

Yes, customers often use both terms for the same type of work. A fuse board replacement usually means replacing an older fuse box or consumer unit with a modern consumer unit.

Does every old fuse board need replacing?

No. Age alone does not mean a fuse board has to be replaced. The condition of the board, the protective devices, the earthing, bonding and the wider installation all need to be assessed.

Why do you complete an EICR first?

We will complete an EICR first because it checks the condition of the existing electrical installation before the consumer unit is replaced. It helps identify issues such as undersized bonding, earthing concerns, circuit faults or previous alterations before the upgrade is planned.

Will the power be turned off?

Yes. The electrical supply needs to be safely isolated while the old board is removed and the new consumer unit is installed.

Will the existing circuits be tested?

Yes. Testing the existing circuits is an essential part of a proper consumer unit upgrade. On older installations, testing can identify issues before the new board is fitted.

Do I receive certification?

Yes. The completed work should be inspected, tested and certified. It should also be notified under the Building Regulations where required.

Can you upgrade the board if there are existing faults?

Not really. Most issues need repairing before the new consumer unit can be connected safely. We will explain any problems found and advise on the next step.

Why do meter tails, bonding and the main earth matter?

Meter tails, bonding conductors and the main earth form part of the essential electrical installation. If they are undersized or unsuitable, they may need upgrading as part of the consumer unit replacement.

Consumer unit upgrades in Ropley

If you have an old fuse board, limited RCD protection, poor circuit labelling, signs of damage or electrics that have not been checked for some time, Wessex Electrical Services can assess the installation and explain your options.

We can carry out the inspection, complete the testing, advise on the right consumer unit and provide a clear quotation for the work.
