A loose electrical connection might sound like a small problem. Inside a fuse board, however, it can cause serious overheating, damage insulation and create a fire risk.

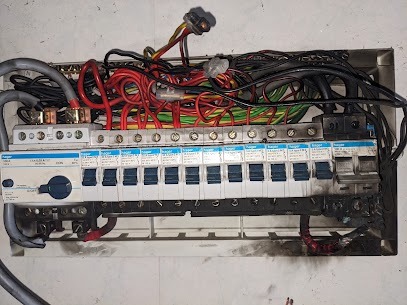

At Wessex Electrical Services Ltd, we encountered a fuse board in Four Marks, near Alton, where a loose connection on the main switch had caused extensive overheating. The damage left the fuse board burnt out.
This is a reminder that electrical safety is about more than whether your lights work and your sockets supply power. A connection can continue carrying electricity while becoming dangerously hot.
What caused the fuse board in Four Marks to burn out?
In this case, the problem was a loose connection at the main switch.
Electrical connections need secure contact between the conductor and its terminal. A loose or poorly made connection can create increased resistance at that contact point. As current flows through it, heat develops.
That heat can damage the terminal, the switch and the surrounding cable insulation. As the connection deteriorates, the damage can become progressively worse.
BS 7671, the IET Wiring Regulations, requires electrical connections to provide durable electrical continuity and adequate mechanical strength and protection. The damage at this Four Marks property shows why those requirements matter.
Wouldn’t a fuse blow or a circuit breaker trip?
Not necessarily.
A poor connection can overheat while the current remains below the level needed to operate a fuse or circuit breaker. An RCD detects an imbalance between the currents flowing through it; it does not directly monitor the temperature of a terminal.
Having protective devices fitted does not mean every overheating connection will automatically disconnect. “Nothing has tripped” is not proof that everything is safe.
What warning signs should homeowners look out for?
Warning signs can include a burning smell, buzzing or crackling, discolouration, melted plastic, flickering lights or an intermittent supply.
These symptoms need investigation, even if the electricity still appears to work. Some faults develop without an obvious warning to the householder.
Do not remove the fuse board cover or attempt to tighten connections yourself. If there is smoke, fire or a persistent unexplained burning smell suggesting a fire, get everyone out, stay out and call 999. Do not approach a smoking or burning board to operate its switches.
How can electrical inspection and testing help?
Periodic inspection and testing assesses whether an electrical installation is in a satisfactory condition for continued use. The findings are recorded in an Electrical Installation Condition Report, usually called an EICR.
An inspection carried out in accordance with BS 7671 combines visual examination with appropriate electrical testing. It can identify damage, deterioration and potentially dangerous defects, including evidence of overheating.
An EICR is an assessment of the installation at the time, within its recorded scope and limitations. It cannot guarantee that every concealed defect will be found or that a fault will never develop afterwards. Warning signs still need attention between inspections.
How often should a property be inspected and tested?
For an owner-occupied home, Electrical Safety First recommends inspection and testing at least every 10 years. An earlier inspection may be appropriate, particularly if the previous report recommends it or there are concerns about the installation.
For private rented homes in England covered by the electrical safety regulations, inspection and testing is legally required at intervals of no more than five years, or sooner where the report requires it.
BS 7671 does not set one blanket interval for every property. The appropriate interval depends on the installation’s condition, use, maintenance and environment.
Check the next inspection date on your existing report—and never wait for that date if something appears wrong.
Need an electrical inspection in Four Marks?
The burnt-out fuse board at this Four Marks property illustrates how serious a single poor connection can become. You do not need to wait for a complete electrical failure before arranging an inspection.
At Wessex Electrical Services Ltd, we provide electrical inspection and testing for homes and businesses in Four Marks, Medstead, Alton and the surrounding villages.
If you do not know when your property was last inspected, or you have concerns about your fuse board, get in touch. We can assess the installation, explain our findings clearly and advise on any work needed.
A loose connection can remain out of sight. Its consequences can be anything but small.
